Use the exploded diagram to identify the number of the part you need, then choose the matching part below. Check the part name and your stove model before ordering.

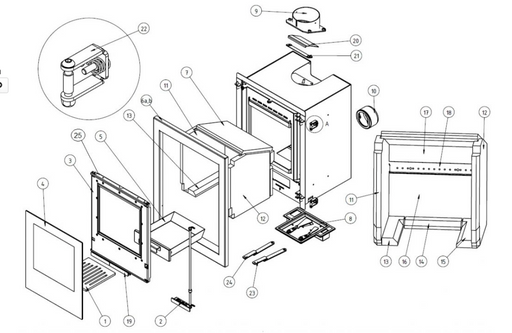

Exploded diagram of the Stanley Solis Inset 500 with numbered spare parts

Tap to enlarge. No. 1 and No. 18 are discontinued.

Small reference of the Solis i500 exploded diagram Keep the diagram handy as you choose parts. Tap it to see the numbers at full size.

Choose your part

  1. 2Door Locking System
    View part€98.00
  2. 3Door Subassembly
    View part€185.00
  3. 4Door Glass MK1
    View part€219.00
  4. 5Ash Pan
    View part€68.00
  5. 6AThree Side Frame
    View part€73.00
  6. 6BFour Sided Frame
    View part€77.00
  7. 7Top Baffle
    View part€31.00
  8. 8Air Control Chamber
    View part€68.00
  9. 9Flue Spigot
    View part€59.00
  10. 10OSA Connection
    View part€34.00
  11. 11LH Side Brick
    View part€26.00
  12. 12RH Side Brick
    View part€26.00
  13. 13LH Base Brick
    View part€13.00
  14. 14Rear Base Brick
    View part€13.00
  15. 15RH Base Brick
    View part€13.00
  16. 16Bottom Back Brick
    View part€29.00
  17. 17Top Back Brick
    View part€13.00
  18. 19Chrome Door Trim
    View part€49.00
  19. 20Flue Restrictor Plate
    View part€20.00
  20. 21Flue Restrictor Plate Fixing Bracket
    View part€15.00
  21. 22Spring Loaded Locking Mechanism Set
    View part€15.00
  22. 23Primary Air Control Lever
    View part€15.00
  23. 24Secondary Air Control Lever
    View part€15.00
  24. —Door Glass Gasket (3 × 25 mm)
    View part€14.00

The glass gasket is listed in the parts list but is not numbered on the diagram.

Need help identifying a part, including the No. 25 glass holder shown in the drawing? Contact us with your stove model and a photo.

Solis Inset 500 Parts

Filters

€15.00 - €15.00
€15.00
€15.00 - €15.00
€15.00

Solis Secondary Air Control Lever

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Secondary Air Control Lever for the Stanley Solis i500 inset stove. Shown as No. 24 on the exploded diagram. SKU: 093-09-020.

€15.00 - €15.00
€15.00
€15.00 - €15.00
€15.00
€14.00 - €14.00
€14.00
€14.00 - €14.00
€14.00

Solis Door Glass Gasket (3 × 25 mm)

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Door Glass Gasket (3 × 25 mm) for the Stanley Solis i500 inset stove. This gasket is not numbered on the exploded diagram. SKU: 10001619.

€14.00 - €14.00
€14.00
€14.00 - €14.00
€14.00
€15.00 - €15.00
€15.00
€15.00 - €15.00
€15.00

Solis Flue Restrictor Plate Fixing Bracket

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Flue Restrictor Plate Fixing Bracket for the Stanley Solis i500 inset stove. Shown as No. 21 on the exploded diagram. SKU: 093-08-000.

€15.00 - €15.00
€15.00
€15.00 - €15.00
€15.00
€15.00 - €15.00
€15.00
€15.00 - €15.00
€15.00

Solis Primary Air Control Lever

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Primary Air Control Lever for the Stanley Solis i500 inset stove. Shown as No. 23 on the exploded diagram. SKU: 093-09-030.

€15.00 - €15.00
€15.00
€15.00 - €15.00
€15.00
€15.00 - €15.00
€15.00
€15.00 - €15.00
€15.00

Solis Spring Loaded Locking Mechanism Set

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Spring Loaded Locking Mechanism Set for the Stanley Solis i500 inset stove. Shown as No. 22 on the exploded diagram. SKU: 093-02-070.

€15.00 - €15.00
€15.00
€15.00 - €15.00
€15.00
€20.00 - €20.00
€20.00
€20.00 - €20.00
€20.00

Solis Flue Restrictor Plate

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Flue Restrictor Plate for the Stanley Solis i500 inset stove. Shown as No. 20 on the exploded diagram. SKU: 093-00-005.

€20.00 - €20.00
€20.00
€20.00 - €20.00
€20.00
€49.00 - €49.00
€49.00
€49.00 - €49.00
€49.00

Solis Chrome Door Trim

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Chrome Door Trim for the Stanley Solis i500 inset stove. Shown as No. 19 on the exploded diagram. SKU: 093-01-040.

€49.00 - €49.00
€49.00
€49.00 - €49.00
€49.00
€13.00 - €13.00
€13.00
€13.00 - €13.00
€13.00

Solis Top Back Brick

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Top Back Brick for the Stanley Solis i500 inset stove. Shown as No. 17 on the exploded diagram. SKU: 093-30-005.

€13.00 - €13.00
€13.00
€13.00 - €13.00
€13.00
€13.00 - €13.00
€13.00
€13.00 - €13.00
€13.00

Solis RH Base Brick

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement RH Base Brick for the Stanley Solis i500 inset stove. Shown as No. 15 on the exploded diagram. SKU: 093-30-002.

€13.00 - €13.00
€13.00
€13.00 - €13.00
€13.00
€29.00 - €29.00
€29.00
€29.00 - €29.00
€29.00

Solis Bottom Back Brick

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Bottom Back Brick for the Stanley Solis i500 inset stove. Shown as No. 16 on the exploded diagram. SKU: 093-30-004.

€29.00 - €29.00
€29.00
€29.00 - €29.00
€29.00
€13.00 - €13.00
€13.00
€13.00 - €13.00
€13.00

Solis Rear Base Brick

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Rear Base Brick for the Stanley Solis i500 inset stove. Shown as No. 14 on the exploded diagram. SKU: 093-30-003.

€13.00 - €13.00
€13.00
€13.00 - €13.00
€13.00
€26.00 - €26.00
€26.00
€26.00 - €26.00
€26.00

Solis RH Side Brick

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement RH Side Brick for the Stanley Solis i500 inset stove. Shown as No. 12 on the exploded diagram. SKU: 093-30-007.

€26.00 - €26.00
€26.00
€26.00 - €26.00
€26.00
€26.00 - €26.00
€26.00
€26.00 - €26.00
€26.00

Solis LH Side Brick

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement LH Side Brick for the Stanley Solis i500 inset stove. Shown as No. 11 on the exploded diagram. SKU: 093-30-008.

€26.00 - €26.00
€26.00
€26.00 - €26.00
€26.00
€13.00 - €13.00
€13.00
€13.00 - €13.00
€13.00

Solis LH Base Brick

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement LH Base Brick for the Stanley Solis i500 inset stove. Shown as No. 13 on the exploded diagram. SKU: 093-30-001.

€13.00 - €13.00
€13.00
€13.00 - €13.00
€13.00
€59.00 - €59.00
€59.00
€59.00 - €59.00
€59.00

Solis Flue Spigot

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Flue Spigot for the Stanley Solis i500 inset stove. Shown as No. 9 on the exploded diagram. SKU: 093-05-040.

€59.00 - €59.00
€59.00
€59.00 - €59.00
€59.00
€68.00 - €68.00
€68.00
€68.00 - €68.00
€68.00

Solis Air Control Chamber

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Air Control Chamber for the Stanley Solis i500 inset stove. Shown as No. 8 on the exploded diagram. SKU: 093-09-000.

€68.00 - €68.00
€68.00
€68.00 - €68.00
€68.00
€34.00 - €34.00
€34.00
€34.00 - €34.00
€34.00

Solis OSA Connection

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement OSA Connection for the Stanley Solis i500 inset stove. Shown as No. 10 on the exploded diagram. SKU: 093-05-010.

€34.00 - €34.00
€34.00
€34.00 - €34.00
€34.00
€77.00 - €77.00
€77.00
€77.00 - €77.00
€77.00

Solis Four Sided Frame

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Four Sided Frame for the Stanley Solis i500 inset stove. Shown as No. 6B on the exploded diagram. SKU: 093-07-000A.

€77.00 - €77.00
€77.00
€77.00 - €77.00
€77.00
€31.00 - €31.00
€31.00
€31.00 - €31.00
€31.00

Solis Top Baffle

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Top Baffle for the Stanley Solis i500 inset stove. Shown as No. 7 on the exploded diagram. SKU: 093-30-006.

€31.00 - €31.00
€31.00
€31.00 - €31.00
€31.00
€73.00 - €73.00
€73.00
€73.00 - €73.00
€73.00

Solis Three Side Frame

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Three Side Frame for the Stanley Solis i500 inset stove. Shown as No. 6A on the exploded diagram. SKU: 093-07-000.

€73.00 - €73.00
€73.00
€73.00 - €73.00
€73.00
€68.00 - €68.00
€68.00
€68.00 - €68.00
€68.00

Solis Ash Pan

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Ash Pan for the Stanley Solis i500 inset stove. Shown as No. 5 on the exploded diagram. SKU: 093-06-000.

€68.00 - €68.00
€68.00
€68.00 - €68.00
€68.00
€219.00 - €219.00
€219.00
€219.00 - €219.00
€219.00

Solis i500 Door Glass MK1

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Door Glass MK1 for the Stanley Solis i500 inset stove. Shown as No. 4 on the exploded diagram. SKU: 10001336.

€219.00 - €219.00
€219.00
€219.00 - €219.00
€219.00
€185.00 - €185.00
€185.00
€185.00 - €185.00
€185.00

Solis Door Subassembly

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Door Subassembly for the Stanley Solis i500 inset stove. Shown as No. 3 on the exploded diagram. SKU: 093-01-010.

€185.00 - €185.00
€185.00
€185.00 - €185.00
€185.00
€98.00 - €98.00
€98.00
€98.00 - €98.00
€98.00

Solis Door Locking System

Stanley
Order Now: Dispatches in 5-10 Working Days

Replacement Door Locking System for the Stanley Solis i500 inset stove. Shown as No. 2 on the exploded diagram. SKU: 093-01-060.
